Jewelry CAD Design Services

From a napkin sketch to a production-ready CAD file your caster will thank you for.

Get a free sample render From $60 per model

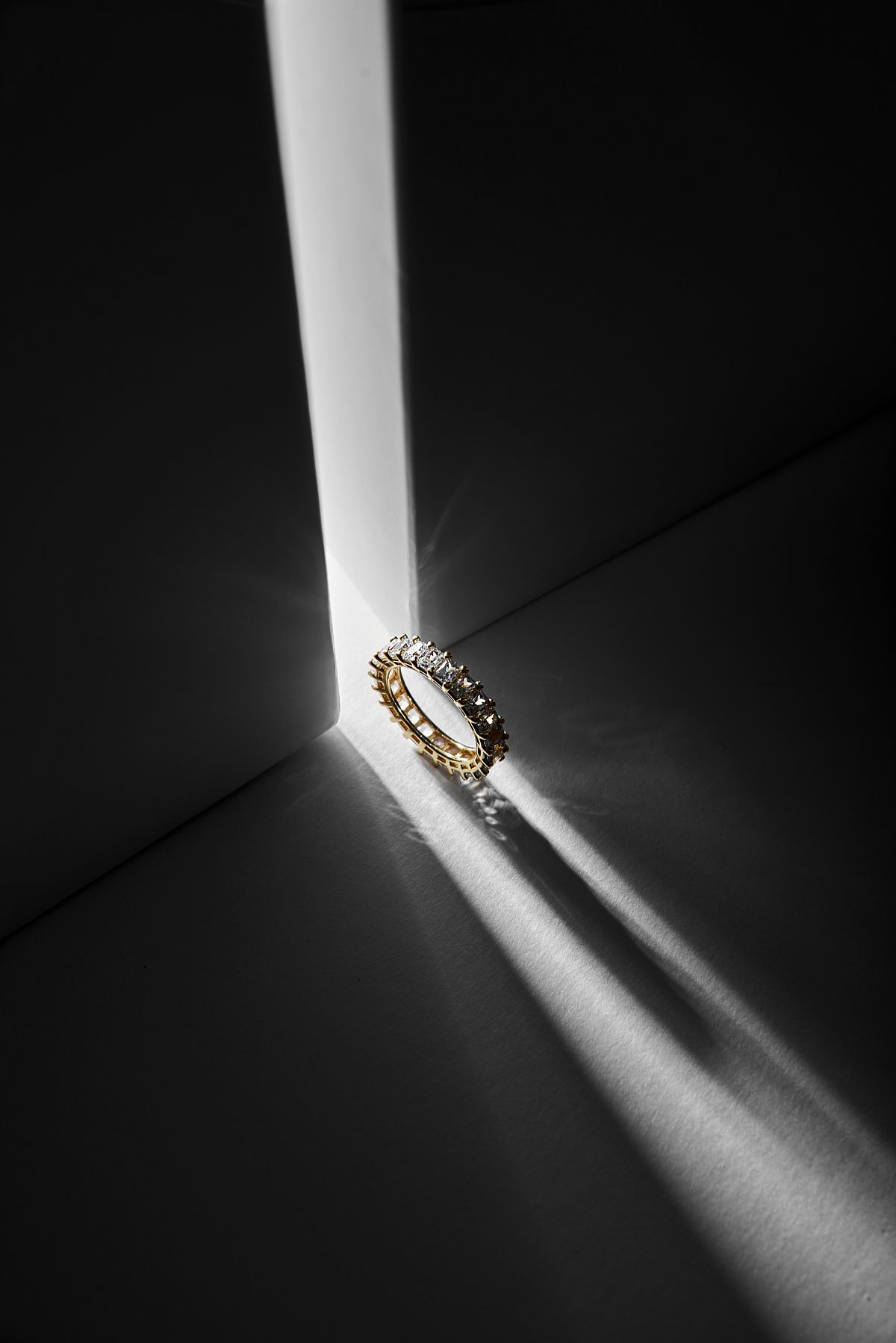

render of a yellow gold eternity band set with emerald cut diamonds, lit by a single hard shaft of light
  • 3DM + STL with every model
  • Stone map sizes and counts included
  • Full rights transfer on final payment
  • NDA terms on request

Our jewelry CAD design services turn sketches, photos, and ideas into production-ready 3D models. Every file ships with stone maps, metal weights, and printable geometry your caster can use as-is.

We model in Rhino and Matrix, the same tools your factory uses, so nothing gets lost between design and production.

Pick the job

Every cad design service, one to 03.

Not sure which one? Send the file and tell us what it is for. We will name the service and the price back to you the same day.

  1. 01 Jewelry CAD Modeling most ordered Castable, printable, production-checked CAD, built by jewelers who model. From $60 per model
  2. 02 Custom Jewelry Design Your client describes it. We design it, model it, and show it photoreal. From $120 per design
  3. 03 CAD to Render You already have the CAD. We make it sell. From $25 per file
What you get

What lands in the folder.

The same delivery spec across every service in this category. Read it before you brief us, so nothing about the handover is a surprise.

01Files
3DM + STL
Rhino 3DM source plus an STL your printer can run without a repair pass.
02Stone map
Sizes and counts
Every stone listed with its size and count, so your setter orders the right parcel first time.
03Metal weight
Per metal
A weight estimate for each metal you plan to cast, before you buy a gram of it.
04Casting check
Thickness + prongs
Minimum wall thickness and prong strength checked. Send your caster's house rules and we model to those.
05Preview
1 render included
One render preview ships with every model, so you can show the piece before it exists.
06Rights
Yours on payment
Full rights transfer on final payment, including the CAD file. NDA terms on request.
Sample work

Delivered from the studio.

3d render of a yellow gold diamond bracelet with emerald cut stones
3d render of a rose gold diamond bracelet with pave links
3d render of a white gold diamond tennis bracelet
3d render of a yellow gold diamond station bracelet
3d render of a rose gold diamond bracelet with bezel set stones
3d render of a white gold diamond charm bracelet
See the full portfolio →
How it works

The same four steps, every time.

  1. 1

    Send your file

    Upload a CAD file, a sketch, or a photo through the quote form. We confirm scope and price the same day.

  2. 2

    We model and render

    Our team sets up metals, stones, and lighting. You get a preview within 24 to 48 hours.

  3. 3

    Review and refine

    Mark up the preview with comments. Two revision rounds are included in every order.

  4. 4

    Get your files

    Final images arrive in JPG, PNG, and TIFF, sized for web, marketplaces, and print.

File specs, timelines, and what we need from you →
Who orders this

Who this category is built for.

01 Jewelry Brands Launch the collection before the first sample leaves the bench. 02 Jewelry Manufacturers Your CAD archive is a catalog waiting to happen. 03 Jewelry Designers Your client cannot picture the finished piece. Show it to them.
Questions

Jewelry CAD Design FAQs.

Read every question we get →
What do you need to start a CAD model?

A sketch, a photo, or a reference piece plus target stone sizes and metal. Rough sketches are fine. We confirm proportions with you before detailing.

How long does a custom design take?

Concept sketches arrive in 2 to 3 days. After you choose a direction, CAD and render take another 3 to 4 days. Rush timelines are available.

My STL files look faceted. Can you fix that?

Yes. Faceted exports are the most common issue we see. We smooth and rebuild surfaces during cleanup, and the render shows polished metal, not polygons.

Will the file actually cast?

Yes. We check wall thickness, prong strength, and shrinkage allowance for casting. If your caster has house rules, send them and we model to those.

Who owns the design?

You do. Full rights transfer on final payment, including the CAD file. We keep nothing but the right to show the work in our portfolio, and we skip that too if you need NDA terms.

Do you charge modeling fees on this service?

No. If your CAD is usable, you pay only the render fee. If a file has problems we cannot clean in under 30 minutes, we quote the fix before touching it.

Elsewhere in the studio

The other three lines of work.

All services in one index →

Send us one CAD file. Get a free sample render.

No payment, no commitment. See our quality on your own design before you spend a dollar.

Get a Free Sample Render

Files answered within one business day.
